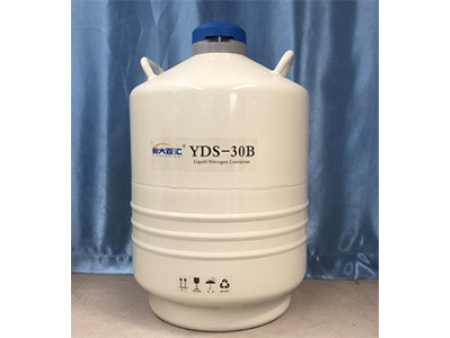

Yds-30b liquid nitrogen tank

In the field of animal husbandry frozen semen, the commonly used transport liquid nitrogen tanks are yds-30b and yds-35b. According to the market demand, our company has developed new large diameter vehicle mounted liquid nitrogen tanks, such as 80 caliber, 125 caliber, etc., which are convenient for distribution to multiple farmers in pastoral areas.

Technical parameters of yds-30b liquid nitrogen tank:

1. Model: yds-30b

2. Geometric volume: 32L

3. Empty weight: 14.5kg

4. Caliber: 50mm

5. Outer diameter: 446mm

6. Height: 670 mm

7. Static liquid storage life: 159 days

8. The static storage period is that the evaporation can be completed in so many days at 22-24 ℃ and 1 standard atmospheric pressure in static state!

The difference between yds-30b transport type liquid nitrogen tank and storage type liquid nitrogen tank is that it is equipped with shock proof design to avoid collision during transportation, which is especially suitable for mountain and grassland users. The container can be placed still or transported under the condition of filling liquid nitrogen.
